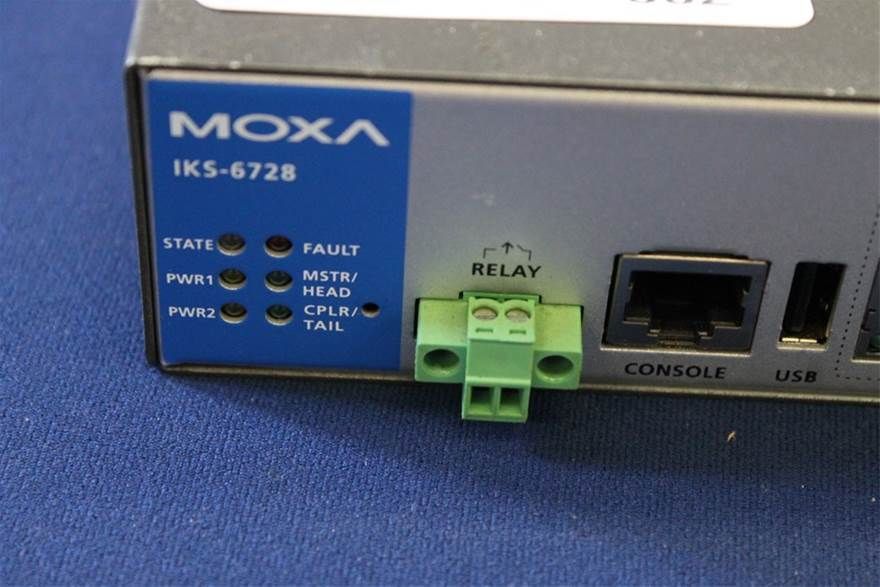

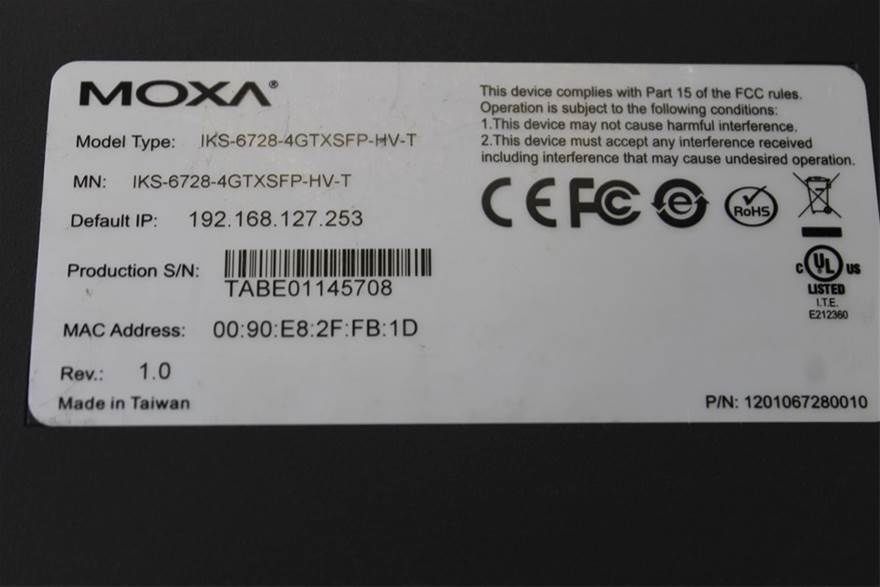

DescriptionMoxa Modular Managed Rackmount Ethernet PoE+ Switch with 8 Built-in 10/100BaseT(X) PoE+ Ports, 4 Gigabit Copper/SFP Combo Ports, and 2 Slots for Fast Ethernet PoE+ Modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, -40 to 75°C operating temperature. (Please Select Model Number.) Media Modules Sold SeparatelyThe Moxa IKS-6728-8PoE series of Gigabit modular managed PoE+ Ethernet switches are designed to meet the demands of mission critical applications for business and industry. The IKS-6728-8PoE comes standard with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones. IKS-6728-8PoE Ethernet switches support two types of power input sources: 48VDC for PoE+ ports and system power, and 110/220 VAC for system power.
These Ethernet switches also support a variety of management functions, including STP/RSTP, TurboRing, Turbo Chain, PoE power management, PoE device autochecking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728-8PoE series is designed especially for harsh outdoor applications with 3KV surge protection to ensure the uninterrupted reliability of PoE systems.
Features & Benefits
·        8 built-in PoE+ ports compliant with IEEE 802.3af/at
·        Up to 36 W output per PoE+ port
·        3 KV LAN surge protection for extreme outdoor environments
·        PoE diagnostics for powered-device mode analysis
·        4 Gigabit combo ports for high bandwidth communication
·        -40 to 75°C operating temperature range at 720 W full loading |
