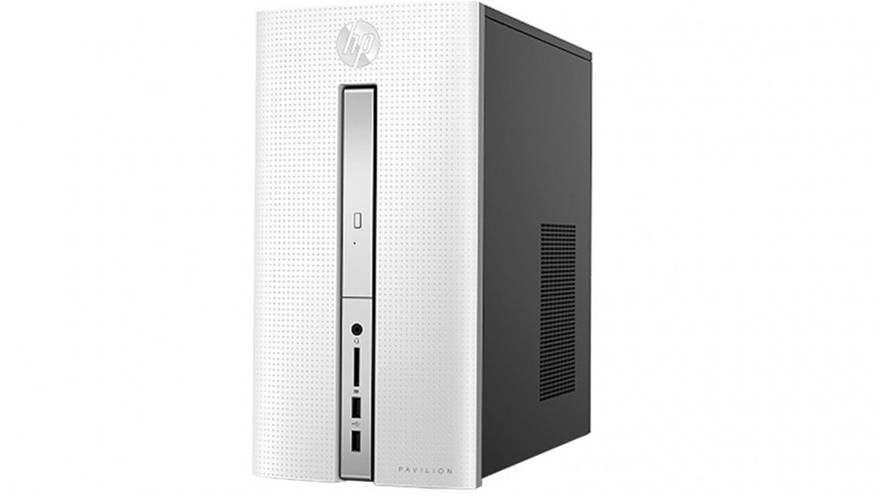

HP Pavilion 510-p050a PC/C i5-6400T/ 16GB DDR4/2TB/R5 330/WIFI/WIN10/OFFICE/WHITE

• Form factor: uATX: 20.5×22.0 cm (8.1×8.7 in)
• Chipset: H170
• Memory sockets: 2 x DDR4
• Processor socket: LGA 1151
• Expansion Slots:
  • One PCI-E (GEN 3) x16 socket
  • One M.2 socket 1, key A
• For more details, see Hamar motherboard specifications.

• CPU speed: 2.2 GHz (2.8 GHz max turbo boost)
• CPU cores: 4
• CPU Cache: 6 MB
• TDP: 35 W
• Integrated graphics: Intel HD graphics (GT2)

• TDP: 35 W
• Socket type: LGA 1151
• Motherboard supports the following processor upgrades:

  Processor	TDP	Integrated Graphics
  Intel Core i7-6700T (Skylake) 2.8 GHz Quad Core	35 W	Intel HD Graphics (GT2)
  Intel Core i5-6400T (Skylake) 2.2 GHz Quad Core	35 W	Intel HD Graphics (GT2)
  Intel Core i3-6100T (Skylake) 3.2 GHz Dual Core	35 W	Intel HD Graphics 530
  Intel Pentium G4400T (Skylake) 2.9 GHz	35 W	Intel HD Graphics 510
  Intel Celeron G3900T (Skylake) 2.6 GHz	35 W	Intel HD Graphics 510

• Amount: 16 GB
• Speed: PC4-17000 MB/s
• Type: DDR4-2133

• Dual channel memory architecture
• Two DDR4 UDIMM (288-pin) sockets
• Supports up to PC4-17000 (DRR4-2133)
• Supports 2 GB, 4 GB, and 8 GB UDIMMs
• Supports up to 4 GB on 32-bit systems

     NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 32 GB (unbuffered) on 64-bit computers

     NOTE:

  HP has tested a maximum of 16 GB on this system and does not recommend maximum memory beyond the 16 GB amount.

     NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

• Board: 4 layer
• Dimensions: 4.518 in x 2.712 in
• Memory size: 2 GB
• Engine clock: 650 MHz
• Memory clock: 900 MHz
• Multi Display Support: N/A
• No external display ports. Hybrid pass-through to UMA only.
• Supports Blu-ray
• Total power consumption: <25 W

   NOTE:

Integrated graphics does not work if a graphics card is installed.

• Audio Codec: ALC3863-CG
• Audio jack presence detection

     NOTE:

  An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.

     NOTE:

  Integrated sound is not available if a graphics card is installed.

• Interface: M.2
• Transmission standards: 802.11 b/g/n
• Single band: 2.4 GHz

• Size: 2 TB
• Interface: SATA
• Rotational Speed: 7200 RPM

• Data transfer rates up to 3,600 KB/s (CD read/write)
• Data transfer rates up to 10,800 KB/s (DVD read/write)

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

• Height: 36.40 cm (14.33 in)
• Width: 37.80 cm (14.88 in)
• Depth: 16.31 cm (6.42 in)
• Weight 5.70 kg (12.57 lb) – without packaging

• 180 W uATX aPFC internal power supply

• USB 2.0: 2
• Headphone/Microphone jack: 1

   NOTE:

The configuration might vary slightly depending on your model.

1. VGA
2. HDMI
3. USB 3.0: 2
4. USB 2.0: 2
5. LAN (Ethernet)
6. Audio: Line in
7. Audio: Line out
8. Audio: Microphone
